Oracle Autonomous Data Warehouse (OAD/ADW)

Version Supported: 19c / 20c

Tool Permissions Prerequisites

Warning: Missing permissions could end up in broken lineages.

• Log into OCI, go to databases.

  • Select the database you want to connect and click on “Database connection”.

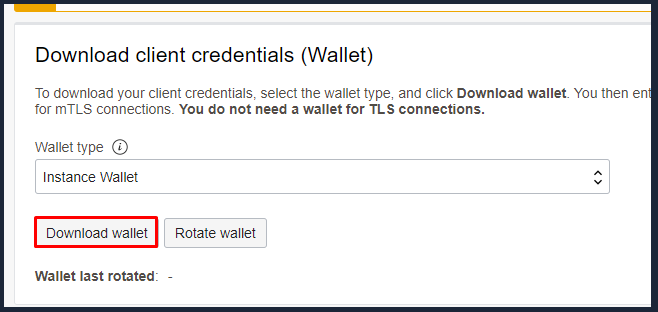

  • Set the wallet type to “Instance Wallet” , and download the file.



  • Extract the content of the zip into a folder , it should look like this:

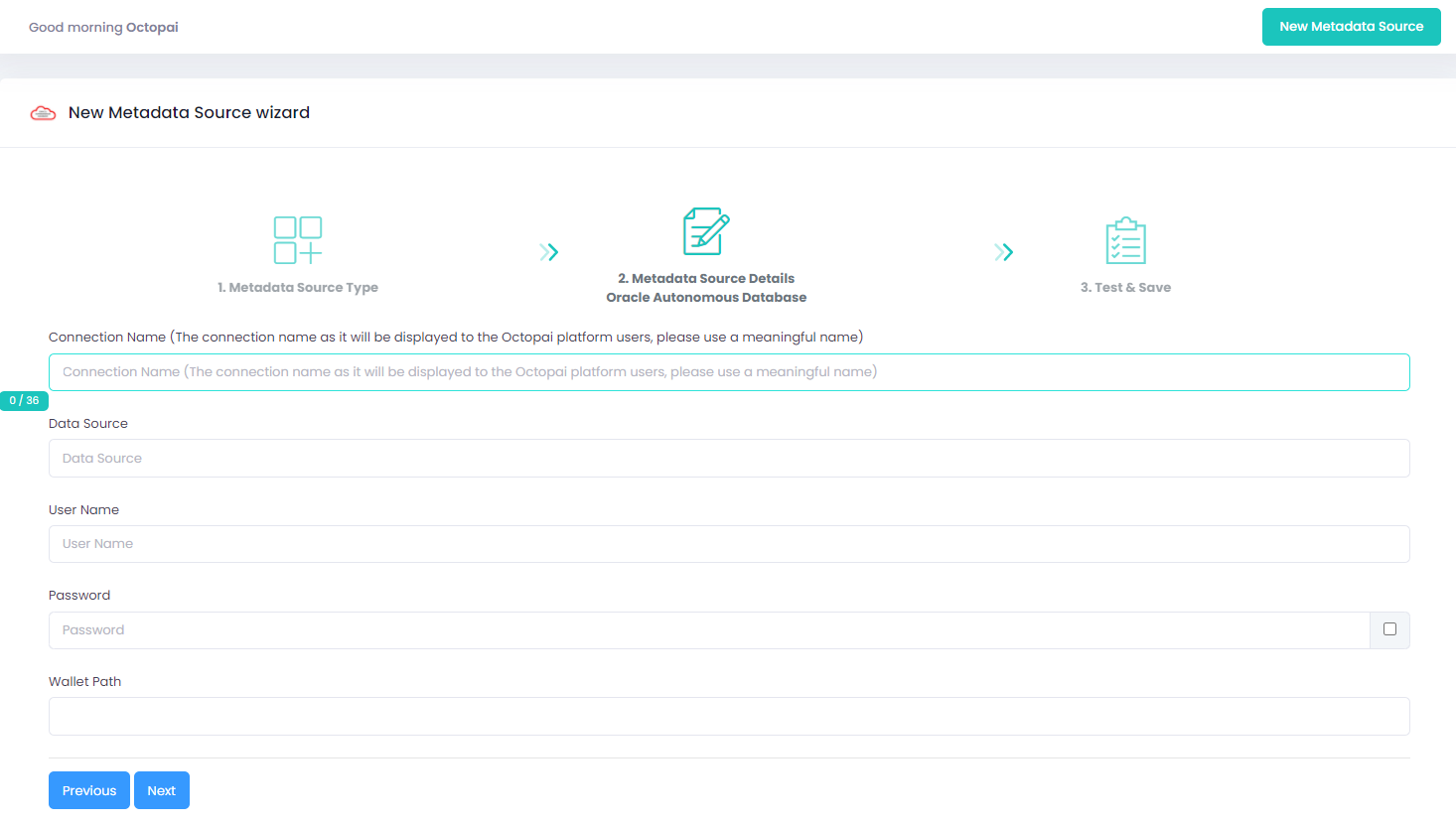

Setting up OAD Metadata Source

Metadata Sources are set on the Octopai Client (OC)

How to verify the extracted Metadata File

Access the Octopai Target Folder (TGT)

1. Go to the TGT Folder located on the Server where the Octopai Client is installed.
   By default: C:\Program Files (x86)\Octopai\Service\TGT
2. Open the zip file having the Connector Name
   Example:
3. Verify its content
   Quantity & Quality of inner files

Troubleshoot

Error during the extraction:

• Check the permissions
• Send the log with the connector number and name to Octopai Support - C:\Program Files (x86)\Octopai\Service\log
